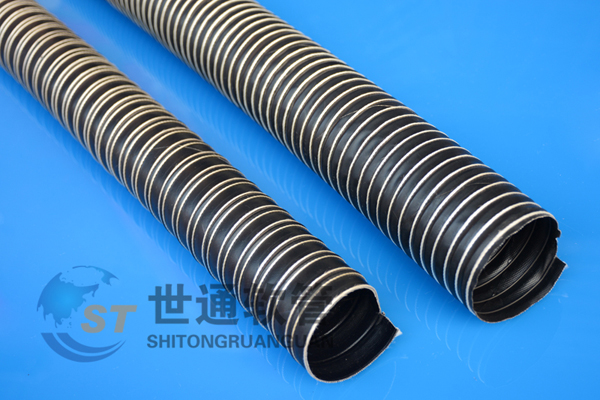

      ST00385a hose (chloroprene rubber)

      Product Name:ST00385a hose (chloroprene rubber)
      Product Name:ST00385a
      Product Description

      Material: spiral ring: high elastic steel wire, high temperature resistant glass fiber pipe wall: double layer neoprene coated glass fiber cloth.
      Application:
      Used for cold and hot air circulation system, such as plastic industry, dry hot air: particle / plastic dryer, hot air dryer, film blowing machine, extruding tool to cool air,
      Printing machinery, hot air blower and compressor, and exhaust emissions, car engine heating, train hot air circulation system, aviation equipment and military equipment, air supply: UV dryer, infrared dryer passenger car, off-road car, caravan / trailer, RV / camper / leisure car, small boat, ship / ship, yacht: ventilation, heating
      Refuse incineration plants are transported by high temperature air or gas medium.
      Characteristic:
      It has smooth inner wall, small wind resistance, light weight, strong elasticity and flexibility.
      Anti UV, oil resistant, corrosion resistant, durable and durable.
      Imported chloroprene rubber material is environmentally friendly, non-toxic and flame retardant.
      Double layer, fiber reinforced lightweight, minimal bending radius good chemical resistance.
      Good heat resistance, smooth inner wall, easy to bend, no easy to kink, bending, no indentation after restoration.
      Temperature range: -35 C to 135 C, short time to 150 C.
      Technical parameters:



      氯丁橡膠耐高溫軟管,氯丁橡膠高溫風管,空氣壓縮機進氣管

      內徑(mm)
      外徑
      工作壓力
      彎曲半徑(mm)
      凈重(kg/m)
      紙箱尺寸(cm)
      長度(m/條)
      訂購號碼
      (mm)
      正壓
      負壓
      (bar)
      (bar)
      19
      22
      3
      0.73
      22
      0.11
      10*10*100
      4
      ST00385a-019-0000
      22
      25
      3
      0.72
      25
      0.17
      10*10*100
      4
      ST00385a-022-0000
      25
      29
      2.8
      0.71
      30
      0.19
      10*10*100
      4
      ST00385a-025-0000
      32
      36
      2.7
      0.65
      36
      0.28
      12*12*100
      4
      ST00385a-032-0000
      38
      43
      2.6
      0.6
      43
      0.31
      12*12*100
      4
      ST00385a-038-0000
      44
      49
      2.6
      0.58
      49
      0.32
      15*15*100
      4
      ST00385a-044-0000
      51
      56
      2.6
      0.52
      56
      0.36
      15*15*100
      4
      ST00385a-051-0000
      63
      68
      2.4
      0.46
      68
      0.49
      17*17*100
      4
      ST00385a-063-0000
      76
      81
      2.1
      0.43
      81
      0.58
      21*21*100
      4
      ST00385a-076-0000
      83
      88
      2.1
      0.41
      88
      0.63
      21*21*100
      4
      ST00385a-083-0000
      89
      94
      2
      0.4
      94
      0.69
      21*21*100
      4
      ST00385a-089-0000
      102
      107
      1.9
      0.35
      107
      0.77
      26*26*100
      4
      ST00385a-102-0000
      115
      120
      1.5
      0.3
      120
      0.85
      28*28*100
      4
      ST00385a-115-0000
      121
      127
      1.5
      0.24
      127
      0.89
      31*31*100
      4
      ST00385a-121-0000
      127
      133
      1.4
      0.23
      133
      0.93
      31*31*100
      4
      ST00385a-127-0000
      140
      146
      1.3
      0.2
      146
      1
      33*33*100
      4
      ST00385a-140-0000
      152
      158
      1.2
      0.17
      158
      1.2
      33*33*100
      4
      ST00385a-152-0000
      178
      184
      1
      0.12
      184
      1.43
      39*39*100
      4
      ST00385a-178-0000
      203
      209
      0.7
      0.09
      209
      1.65
      45*45*100
      4
      ST00385a-203-0000
      254
      260
      0.5
      0.07
      260
      2.09
      55*27*190
      4
      ST00385a-254-0000
